Name: Coal-based columnar activated carbon
Ap
pearance: Black cylindrical particles

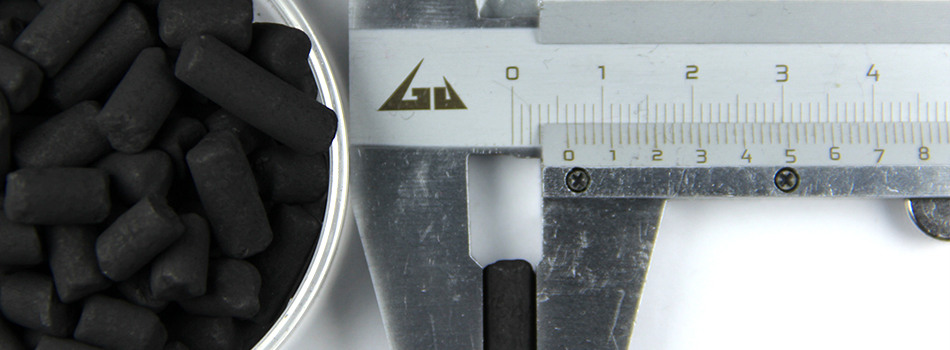

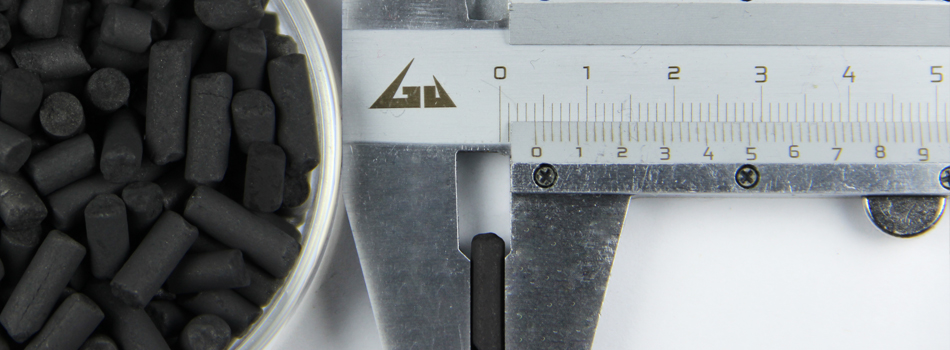

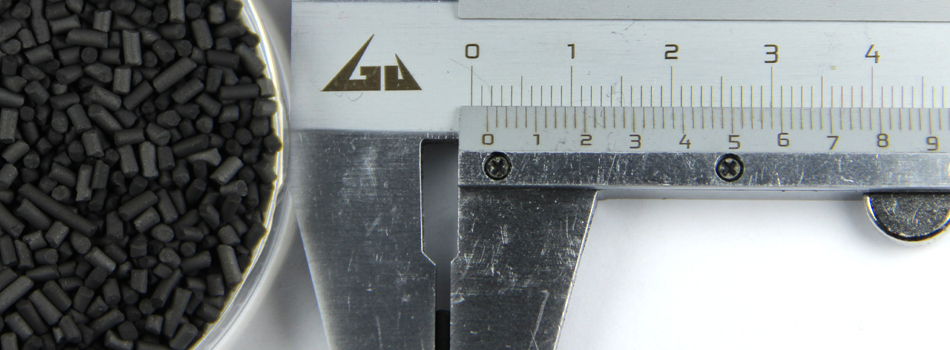

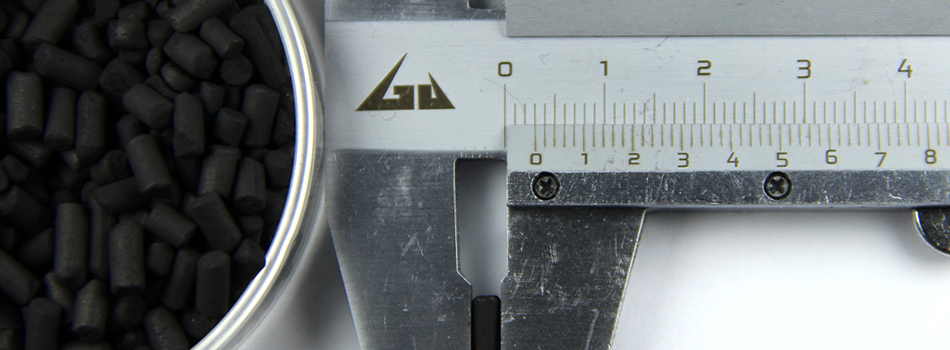

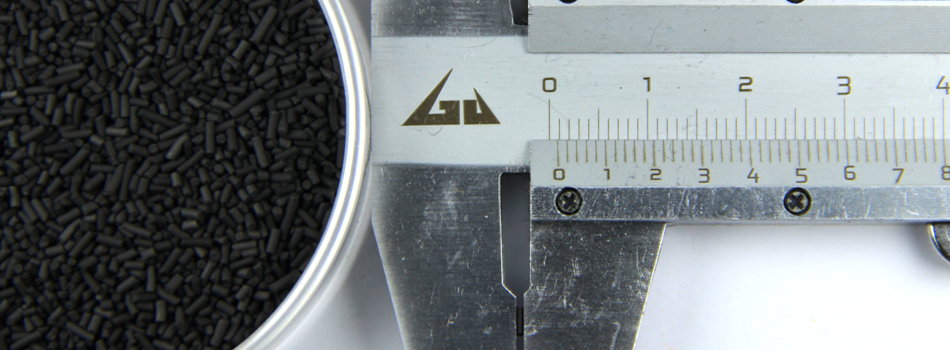

Specifications: 0.9mm 1.5mm 2mm 3mm 4mm 5mm 6mm 7mm 9mm
Features: Good adsorption performance, high mechanical strength, easy to regenerate repeatedly, low cost.
Use: Used for purification of toxic gases, waste gas treatment, industrial and domestic water purification, solvent recovery, desulfurization and denitrification, etc.
Civil air defense carbon has a highly efficient adsorption effect. It is mainly used for the adsorption of poisonous gases and military industry
Use: Civil air defense carbon has a highly efficient adsorption effect. It is mainly used for the adsorption of poisonous gases. Because activated carbon has a huge surface area and a strong adsorption capacity, it is used in gas masks to adsorb toxic and harmful substances such as benzene, ammonia and TVOC, as well as oil fume odor; purify the air, improve the living environment, and protect human health; it can be widely used in precision instruments, instruments, leather, textiles, food, medicine, etc. It can also be used for export products. It is widely used in the packaging of shoes, hats, handbags, food, medicine, toys, wooden products, instruments, meters, electronics, computers and other items. The static adsorption of sealed spaces removes moisture, controls relative humidity, and has the effect of moisture and mildew prevention.
Analyze Project | unit | Test Data |
Moisture | % | ≤3 |
strength | % | ≥91 |
Packing density | g/L | 实测 |
CTC | % | ≥60 |
Water capacity | % | ≥80 |
Particle size distribution (percentage) | >1.25mm | ≤2 |
1.25-1.00mm | 10%-50% | |
1.0-0.80mm | Measured | |
<0.80mm | ≤5% | |
Note: The specifications and technical indicators in this table are for reference only. The specific production and processing can be based on user needs. |
Used for water, gas purification, filters, filter core carbon, gas mask
Uses: used for purification of toxic gases, waste gas treatment, purification of industrial and domestic water, solvent recovery, etc. Columnar activated carbon is generally used in water treatment fields such as water plants. In water treatment, carbon with a diameter of 1.5 mm, also called 15 carbon, is usually used.
Analyze Project | Testing standard/unit | index |
Moisture | % | ≤5 |
Ash | % | <12 |
strength | % | >90 |
Packing density | g/L | Measured |
Methylene blue value | Mg/g | 120-200 |
Iodine adsorption value | GB/T7702-2008mg/g | 500-1050 |
Note: The specifications and technical indicators in this table are for reference only. The specific production and processing can be based on user needs. |
Used for water purification
Application: water treatment. Filling, dechlorination, oil reduction and purification of urban drinking water, pure water, distilled water, ultrapure water and other manufacturing equipment and deep purification of various industrial wastewater.
Analyze Project | Testing standard/unit | index |
Moisture | % | 5 |
Ash | % | 10-12 |
strength | % | >95 |
Packing density | g/L | 实测 |
Methylene blue value | Mg/g | 80-200 |
Iodine adsorption value | GB/T7702-2008mg/g | 500-1100 |
CTC | % | 20-80 |
Note: The specifications and technical indicators in this table are for reference only. The specific production and processing can be based on user needs. |
Used for industrial wastewater and waste gas treatment, paint spraying and baking room, adsorption tower
Use: The columnar activated carbon produced is widely used in domestic sewage, chemical wastewater, water plants, gas desulfurization, air purification, chemical industry and other fields. Waste gas treatment, used for chemical raw material gas, chemical synthesis gas, pharmaceutical industry gas, beverage carbon dioxide gas and hydrogen, nitrogen, chlorine, hydrogen chloride, ethane, ethane, cracking gas, inert gas, etc., and atomic facility exhaust purification. It is also used to remove pollutants from the air and separate and purify mixed gases.
Analyze Project | Testing standard/unit | index |
Moisture | % | 5 |
Ash | % | 10-12 |
strength | % | >95 |
Packing density | g/L | 实测 |
Methylene blue value | Mg/g | 80-200 |
Iodine adsorption value | GB/T7702-2008mg/g | 500-1100 |
CTC | % | 20-80 |
Note: The specifications and technical indicators in this table are for reference only. The specific production and processing can be based on user needs. |
Mainly used for efficient desulfurization and denitrification of flue gas from hydropower plants and tail gas from nonferrous metal smelting
Application: 9mm columnar activated carbon is usually used as carbon for desulfurization and denitrification. Mainly used for removal of H2S in various biogas, water gas, semi-water gas, coke oven gas, natural gas, carbon dioxide gas, city gas, synthetic ammonia process gas, chemical raw material gas and other gases.
Analyze Project | unit | Test Data | Test Standards |
Moisture | mm | 9±0.3 | Caliper measurement |
Ash | % | ≤3 | GB/T7702.1-1997
|
Packing density | Kg/m3 | 570-700 | GB/T30202.1-2013
|
Particle size distribution(%) | ≥11.2mm | ≤5 | GB/T30202.2-2013
|
11.2mm-5.6mm | ≥90 | ||
5.6-1.4mm | ≤4.7 | ||
≤1.4mm | ≤0.3 | ||
Abrasion resistance | N/cm | ≥97 | GB/T30202.3-2013 |
Compressive strength | kgf | ≥40 | GB/T30202.3-2013 |
Ignition point | ℃ | ≥430 | GB/T7702.9-2008 |
Desulfurization value | mg/g
| ≥18-22.5
| GB/T30202.4-2013
|
Denitrification rate | %
| ≥38/45
| GB/T30202.5-2013
|
Iodine adsorption value | mg/g
| ≥350-450
| GB/T7702.7-1987
|
Ash | % | ≤12-20 | GB/T7702.15-2008
|
PH
| 9.5-11.5
| GB/T7702.16-2008
| |
Specific surface area | ㎡/g
| 310-400
| GB/T30202-2013
|
Volatile Matter | %
| ≤3
| GB/T7702-2008
|
Note: The specifications and technical indicators in this table are for reference only. The specific production and processing can be based on user needs. |
