Desulfurizer white SDG adsorbent, commonly known as dry acid gas adsorbent, SDG acid waste gas adsorbent (dry acid gas adsorbent) is divided into SDG-1 type and SDG-2 type, respectively for the treatment of different acid-containing gases, currently our company produces The SDG adsorbents sold and sold have been widely used in China, and users have responded well.

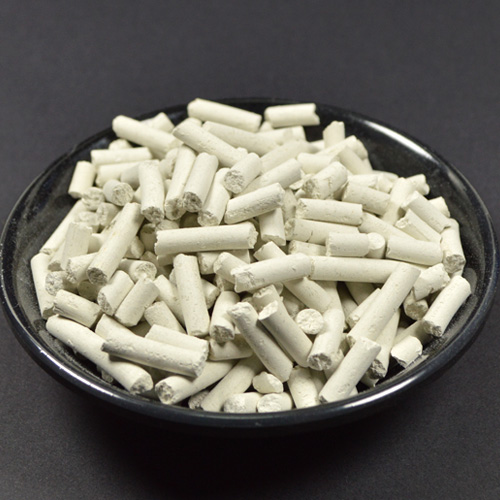

Desulfurizer white SDG adsorbent is a solid particulate inorganic substance with a large specific surface area. is a special activated carbon .When the acid gas in the purified gas reaches the adsorption force field on the surface of the SDG adsorbent, it is fixed on its surface, and then interacts with its active ingredients. A chemical reaction occurs to generate a new neutral salt species and store it in the SDG adsorbent structure. The purification of acid gas by SDG adsorbent is a multifunctional comprehensive effect, in addition to general physical adsorption, there are chemical adsorption, particle adsorption, catalysis, chemical reaction, etc.
The initial adsorption rate of HF can reach more than 98%, the adsorption capacity is 40%, and the adsorption efficiency is 98%~85%
The initial adsorption rate of HCL can reach more than 98%, the adsorption capacity is 50%, and the adsorption efficiency is 98%~80%
The initial adsorption rate of H2SO4 can reach more than 95%, the adsorption capacity is 50%, and the adsorption efficiency is 95%~70%
Sorbent model | SDG-I | SDG-II | ||
Types of Adsorbed Acids | NO2 | H2SO4HCLHF | ||
Bulk specific gravity | 0.51-0.56 | 0.64-0.72 | ||
Treatment of acid gas concentration mg/m3 | ≤1000 | ≤1000 | ||
Initial adsorption efficiency % | NO2 | H2SO4 | HCL | HF |
＞95 | 95 | 98 | 98 | |
Adsorption capacity % | 50% | 50% | 50% | |
| Adsorption efficiency | 95-70% | 95-70% | 85-80% | 98-85% |
Bed pressure drop pa | 0.8-1.5 | 0.8-1.5 | ||
Temperature resistance | ＜300℃ | ＜350℃ | ||
1. It can purify a variety of acid gases at the same time.
2. It can achieve extremely high purification efficiency and can be designed according to the needs of users.
3. The use and maintenance are extremely simple and convenient.
4. There are no special requirements for environmental conditions, and no antifreeze treatment is required in winter.
5. Safe to use.
6. No secondary pollution.

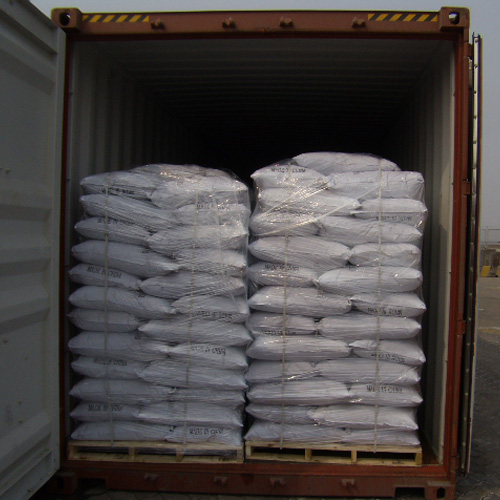

Desulfurizer white packing and delivery:
1. Big bag :1000kg/1200kg jumbo bag
2. Small bag:25kg/20kg PP bag
Desulfurizer white activated carbon manufacturer according to your requirements shipping :
1.20GP FCL :20-28TONS
2.40GP FCL: 25-28TONS
3.40HQ FCL:25 TONS or 28TONS
The above quantity without pallet ,the goods will be sent within 7-15days after receiving your order.
