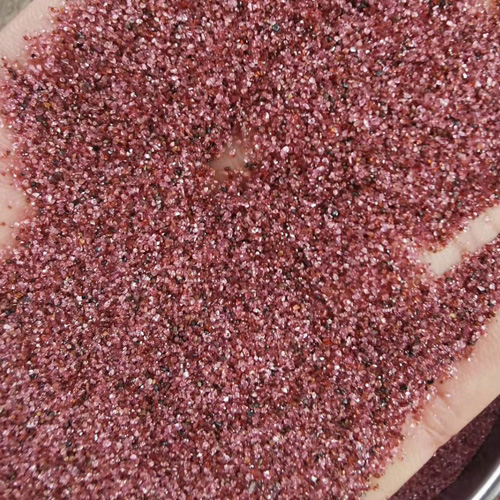

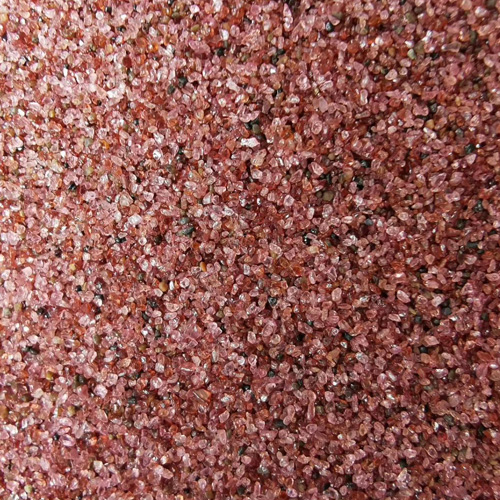

Water jet sand, the full name of water jet cutting abrasive, is mixed with water jet sand to form an abrasive jet to cut metal or other materials, and the cutting thickness sometimes exceeds 150mm. Usually, silica, alumina or garnet with a particle size of 30-150 mesh is used as the abrasive, of which 80-100 mesh garnet sand is the most commonly used. Garnet, chemical name aluminum (calcium) silicate, is brownish red sand-like uniform small particles, slightly black impurities and a small amount of floating dust.
The selected content is 85.4% garnet rock ore, which is artificially dried to make the moisture content less than 4.7%. After mechanical pulverization, pickling (to remove impurities), water washing (to remove sediment and dust), and secondary artificial drying (to facilitate screening and dust removal) , the moisture content is less than 5%. Finally, the packaging is screened with an advanced secondary screening process (to make the particles more uniform).
Water jet sand products | High pressure water jet abrasive, 60 mesh - 90 mesh garnet sand (natural gold steel sand), also known as (water jet sand, water jet sand) |
Chemical Name: | Aluminum (Calcium) Silicate |
Physical Properties: | Brownish red sand-like uniform small particles, slightly black impurities and a small amount of floating dust |
Physical Composition: | Garnet≥89%, Mica≤5%, Dust≤4% |
Whemical composition: | SiO2 36.5%，Al2O3 20.64%，FeO 26.92%， Fe2O3 4.45%，MnO 1.25%，MgO 1.68%， GaO 3.5%
|
Use: | High pressure water jet cutting, water jet cutting, water cutting; 60 mesh sand is used for cutting stainless steel, copper and marble products. 80 mesh sand is used for cutting metal, glass and ceramic products. |
In the application of water jet cutting, the crystal size of garnet can meet its particle size requirements, that is, 0.06-1.0 cm. Compared with diamond grinding wheels and wire saws, water jet cutting using garnet sand has good three-dimensional adaptability, low cost, excellent processing performance, and basically no dust and no pollution.
In abrasive water jet cutting, since abrasives complete more than 90% of the cutting work, the properties and characteristics of abrasive particles become the most important factor. The most commonly used abrasive is garnet with a particle size of 60-100 mesh. The harder the abrasive, the shorter the life of the nozzle. This is why silicon carbide and diamond are obviously harder but rarely used.
Water jet cutting abrasive garnet sand pink packing and delivery:
1. Big bag :1000kg jumbo bag
2. Small bag:25kg PP bag
3. 25kg Kraft paper bag
According to your requirements shipping :
1.20GP FCL :25-28TONS
2.40GP FCL: 25-28TONS
3.40HQ FCL:25TONS or 28 TONS
The above quantity without pallet ,the goods will be sent within 7-15days after receiving your order.
Our factory FAQ
We can provide samples for free and charge shipping.
1. What is your MOQ?
Our product MOQ is 10 kg.
2. What kind of software package will we use?
25 kg plastic bags can also be customized.
3. What is the delivery time?
1*20 GP container takeS about 3 to 5 days.
4. Can you give me a discount?
Yes, we can negotiate
5. Can you give me advice based on the information we describe?
Of course, our mission is to provide you with professional services.
6. What is the shipping method?
Shipping, air, express. International train
7. What is the type of your company?
We are a Manufacturing & Trading Combo.
